Embedded Solutions with CARRIDA

Combined software and hardware solutions from CARRIDA

CARRIDA_CAM_and_VCSBC-Board

The Stand-alone solution

With a power consumption of below 7 Watts, this camera consumes just as much energy as a standard LED light source. All the more surprising that the CARRIDA CAM is an unparalleled power package and therefore requires no further PC to perform its tasks. The entire ALPR/ANPR process takes place directly in the camera. Whether access control, red light monitoring or toll systems – thanks to the integrated CARRIDA software engine, the camera handles all processes. Its memory can also be used to store self-defined blacklists and whitelists for vehicles, which are then automatically taken into account.

Resists the adversities of everyday life

Even though the CARRIDA CAM is probably the smallest self-contained ALPR/ANPR camera in the world, you don’t have to compromise on the results. Whether the license plates are damaged, dirty or placed at unusual angles. Whether direct sunlight or constantly changing lighting conditions – the CARRIDA software engine offers an automatic recognition rate of more than 98 %. You can rely on this and increases on-site efficiency enormously.

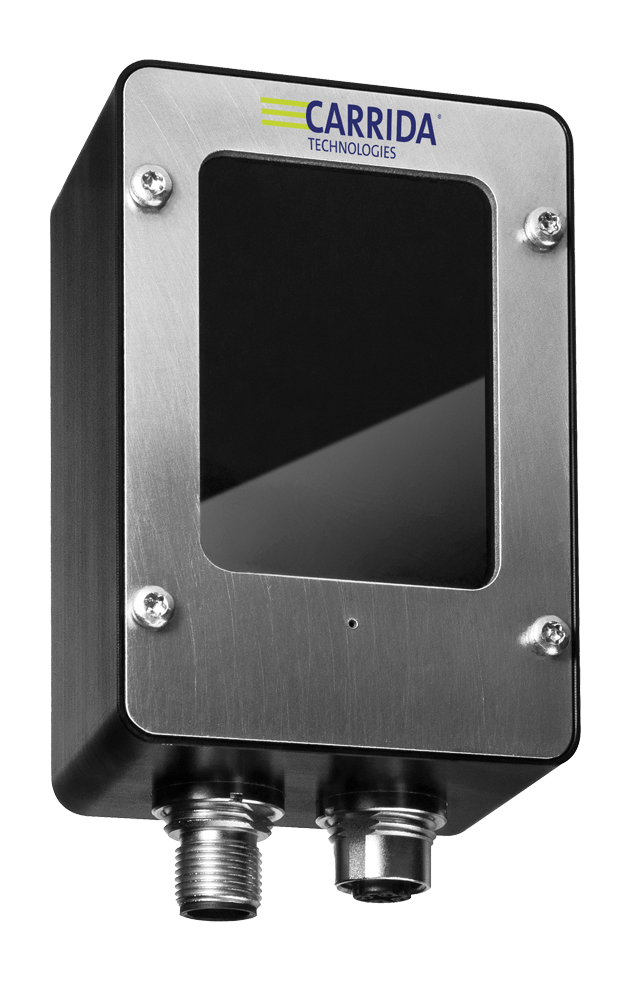

Produktbild CARRIDA Cam basic+

CARRIDA CAM BASIC+

The latest product in the stand-alone-range is the Carrida Cam basic+ 0273. This ultra compact camera system is ideally suited where you need a small package at highest performance. With its ruggedized housing it can be used outdoor as is ready to run with easy 2 cable connection for both network and power/IO. The camera features a High End SONY chip for best image quality possible as basis for high class reading results even at worst conditions.

Features

  • IP67 protection class housing with M12 cable connections
  • Internal heater for operation down to -20° C
  • integrated optics
  • I/O for direct control of entrance monitoring
  • Memory for black-/whitelists (e.g. for park management)
  • powerful processor for reliable results
  • 1 input trigger
  • 1 flash trigger output
  • Integrated IR-illumination
  • Size: 91,5 x 62 x 46 mm
  • Weight: approx. 452 g

Interfaces

  • 100 Mbit
  • 2 inputs
  • 2 outputs

CARRIDA CAM Pro Z series

This is our proven embedded camera product in the stand-alone-range that is running on the market since 2016. This ultra-compact camera system is ideally suited where you need a small package at highest performance. With its ruggedized housing it can be used outdoor as is ready to run with easy 3 cable connection for network, power/IO and RS232 connection. The camera features a High Sensitive e2v image sensor for best image quality possible as basis for high class reading results even at worst conditions.

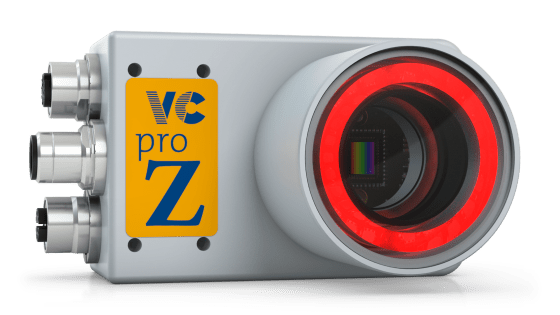

Product image VC Pro Z

Constituents

  • IP67 protection class housing with M12 cable connections
  • heated windscreen prevents formation of condensation water
  • integrated optics
  • I/O for direct control of entrance monitoring
  • Memory for black-/whitelists (e.g. for park management)
  • powerful processor for reliable results
  • 1 trigger input
  • 1 flash trigger output
  • optional: integrated IR-illumination
  • optional: autofocus module
  • Size: 88 x 58 x 36 mm
  • Weight: approx. 300 g

Interfaces

  • Gbit-Ethernet
  • encoder
  • 2 interfaces for external lighting
  • serial interface
  • 4 inputs
  • 4 outputs

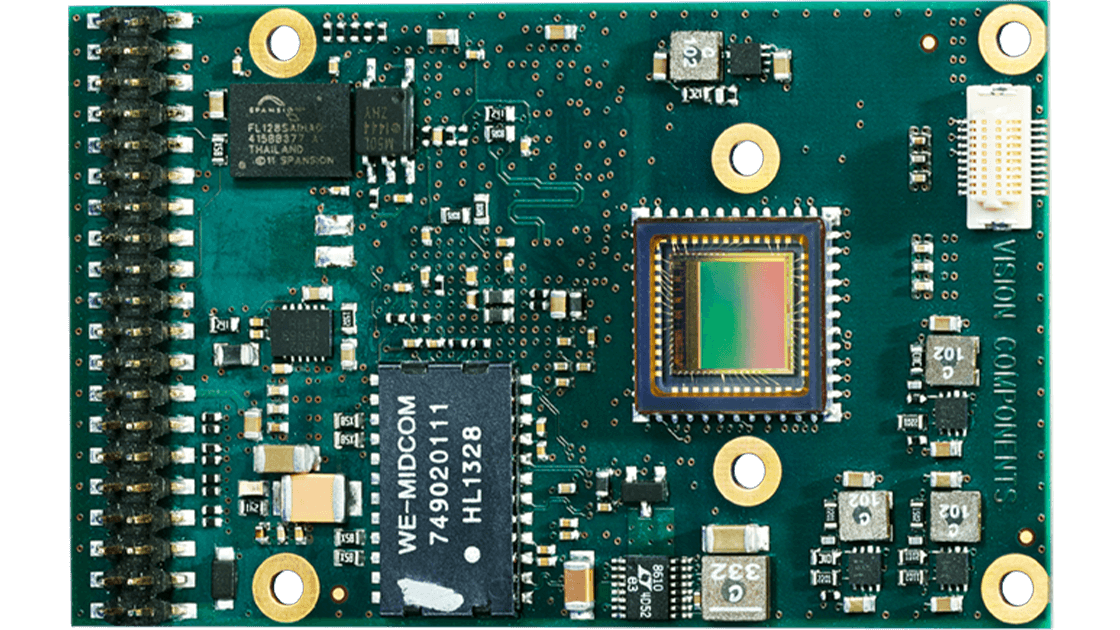

Product image VCSBC nano

The flexible solution

CARRIDA CAM board level

You want to use your own camera hardware but still integrate CARRIDA hardware? The CARRIDA CAM board level was developed exactly for this case. It offers similar performance values as the pro-level version, but is limited to the most important components and does not have its own protective housing for better integration.

Constituents

  • Memory for black-/whitelists (e.g. for park management)
  • powerful processor for reliable results
  • 1 trigger input
  • 1 flash trigger output

optional: 2 external sensor boards for stereo applications

Size: 40 x 65 mm

Weight: approx. 20 g

Interfaces

  • Gbit Ethernet
  • serial interface
  • I²C and 12 programmable I/Os

Embedded ARM/Linux Platform

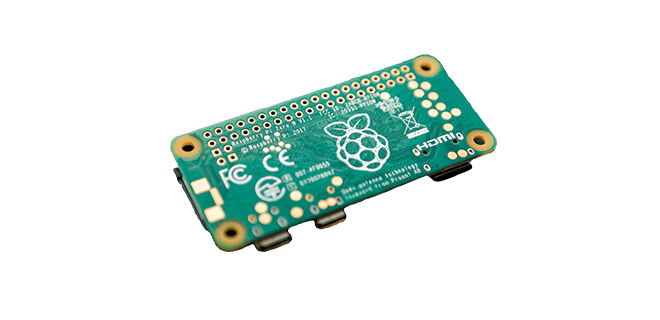

Raspberry PI Integration

Raspberry Pi Module

ARM/Linux SDK

The CARRIDA Software Engine has been optimized for use on embedded platforms from the very beginning. For this we deliver complete SDKs for ARM based HW platforms, which use Linux as operating system, as well as for Android devices. Thus we cover the entire range from compact stand-alone devices up to mobile devices for every field of application.

Embedded ARM/Linux Custom Design

IP Camera integration

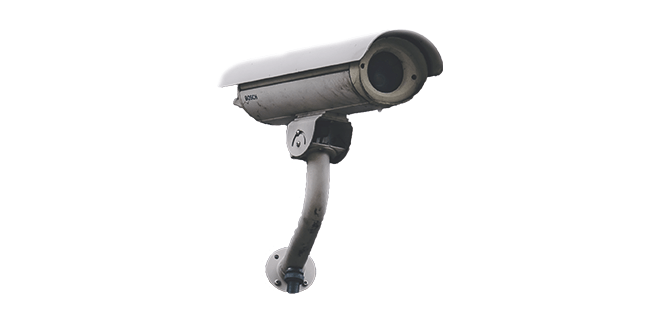

IP Camera from Bosch

CARRIDA on your own IP Camera

You are manufacturer of your own IP camera family, which is based on ARM processors, and you want to offer your own ALPR-capable camera in your portfolio? Then you have come to the right place. We have already adapted our CARRIDA Software Engine to customer-specific platforms for IP camera manufacturers. Used processors were among others from companies like Samsung®, Hisilicon® etc..

Do you need further information?

Leave us your contact details and we will get back to you.
