Erfolgreiche ALPR-Lösungen:
CARRIDA in der Praxis

In zahlreichen Projekten weltweit bewährt sich die CARRIDA Engine. Hier stellen wir einige vor.

Number Plate Recognition (ANPR/LPR)
and Counting Cars

Integration of CARRIDA software engine
into Bulgarian LPR solution

Intelligent Traffic Monitoring System for Bulgarian Roads

Reliable traffic monitoring systems for vehicle identification are in demand all over the world. The Bulgarian company atto-Systems, a provider of industrial image processing systems, developed a high-value-for-money comprehensive license plate recognition (LPR) solution for the Bulgarian market. The automatic number plate recognition (ANPR) software engine CARRIDA plays a key role in this clever combination of OEM components and customer-specific software.

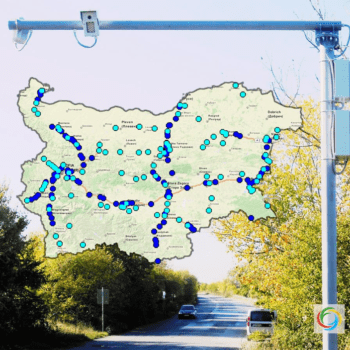

In October 2015, several hundreds of these intelligent transportation systems were tested at 200 different locations across Bulgaria’s road network.

The systems allows

• a continuous traffic count,
• vehicle classification into 10 categories (e.g. passenger car, motorbike, truck),
• speed detection,
• number plate recognition for vehicle speeds up to 200 km/h in up to two traffic lanes,
• recognition accuracy of more than 95 % for Bulgarian number plates.

The ITS systems were installed on purpose-made gantries and triggered by a ground contact in the road. At the heart of this system is CARRIDA, a very fast and precise ANPR software from Germany-based embedded vision expert Vision Components, long-term partner of atto-Systems.

More information about Software Engine

>95 %

recognition accurency for number plates

Counting vehicles

Easy counting of vehicles on the roads.

Classification of vehicles

10 categories: automobiles, motorcycles or trucks.

Speed measurement

Easy detection of vehicle speed.

Identification of license plates

Reliable identification at speeds of up to 200km/h and 2 traffic lanes.

ANPR Software-Engine CARRIDA

atto-Systems has complemented the CARRIDA software solution by adding a number of features to create a customer-specific all-in-one solution:

- Pre-selection of image areas that likely contain a license plate. Only the cropped image portions are sent to CARRIDA, resulting in a more than 100 % faster image evaluation.
- Processing routine to handle peaks in demand
- Blacklist/whitelist option
- Streamlined user interface for easier setup of traffic lanes and parameterisation.
- Maximum functionality in all light and weather conditions. For this purpose, atto-Systems developed a special lighting solution and has integrated a heater, ventilation as well as temperature and moisture sensors into the weather-proof outdoor housing.

atto-Systems Ltd.

Founded
1998
Headquarter
Sofia, Bulgaria

Since 1998 the Bulgarian company atto-Systems is developing custom-specific software with a good price-performance ratio and main focus on industrial image processing. Hundreds of software solutions by atto-Systems are permanently in use in Bulgaria and beyond.

“Using Carrida on the Z-board embedded camera enabled us to implement a compact solution very quickly in a cost-efficient way. Due to our long-standing partnership with CARRIDA, we know we can rely on the high quality and long-term availability of the hardware and software.”
